  • Borri UPS Ingenio ECS 30-160 kVA 3/3

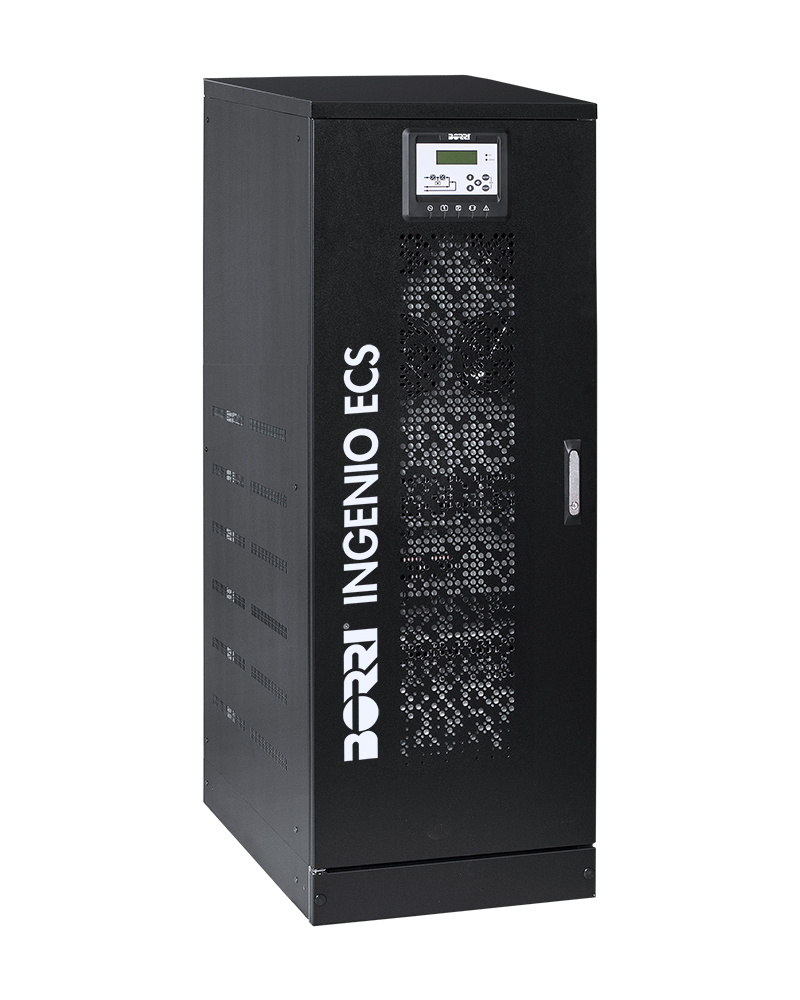

INGENIO ECS

Emergency Central Systems
3-phase 30-160 kVA

Borri INGENIO ECS Emergency Central Systems have been designed in compliance to the international EN 50171 standard, supplying uninterrupted quality power to emergency and safety installations, such as:

  • Emergency lighting
  • Automatic fire detection and extinguishing equipment
  • Smoke extraction systems
  • Carbon monoxide warning systems
  • Paging systems and signaling safety installations
  • Special safety installations related to high-risk areas
  • Continuous savings with Green Conversion technology, providing high efficiency and UPS components’ life extension.
  • Small footprint thanks to a compact transformer free design.
  • Fast installation and monitoring: innovative and user-friendly design with built-in LCD display and optional touch screen.
  • Easy access for fast maintenance and low MTTR.
  • 120% permanent power overload capability.
  • Batteries with 10 years life expectancy.
  • Acid proof battery cabinets and racks.
  • Battery polarity reversal protection.
  • Deep discharge protection.
  • Short circuit protection.
  • Battery charger to recharge battery to provide 80% autonomy within 12 hours.
  • Battery charger temperature compensation.
  • IP20 metal enclosure as per EN60598-1.

Applications

Tech Specs

INGENIO ECS Emergency Central Systems 3-phase 30-160 kVA

Rating (kVA) 30 40 60 80 100 125 160
Nominal power (kW) 30 40 60 80 100 125 160
Nominal power
as per EN 50171 (kW)		 25 33.3 50 67 83 104 133
UPS dimensions WxDxH (mm) 465x650x1230 560x940x1500 560x940x1800
UPS weight (kg) 120 140 190 215 320 360 380
Battery configuration External 360 to 372 cells, VRLA (other options)

Input

Connection type Hardwired 4w Hardwired 4w (rectifier), 4w (bypass)
Nominal voltage 400 Vac 3-phase with neutral (rectifier)
380/400/415 Vac 3-phase with neutral (bypass)
Voltage tolerance -20%, +15% (rectifier); ±10% (bypass)
Frequency and range 50/60 Hz, 45 to 65 Hz
Power factor >0.99
Current distortion (THDi) <3%

Output

Connection type Hardwired 4w
Nominal voltage 380/400/415 Vac 3-phase with neutral
Frequency 50/60 Hz
Voltage regulation Static: ±1%;
dynamic: IEC/EN 62040-3 Class 1
Power factor Up to 1, without power derating
Overload capacity* 120% continuous; 150% for 10 min;
Efficiency (AC/AC)** Up to 99%
Classification as per
IEC/EN 62040-3 		VFI-SS-11

*according to EN 50171 **according to IEC/EN 62040-3

Connectivity and function extensions

Front panel Graphic display, mimic LED panel and keyboard, local EPO
Remote communication Included: serial RS232 and USB; backfeed protection monitoring contact, input terminal block (remote emergency power off, battery circuit breaker aux. cont., external maintenance bypass circuit breaker aux. cont., diesel mode aux. cont.).
Optional: SNMP adapter (Ethernet), Web interface (Ethernet), ModBus-TCP/IP (Ethernet), ModBus-RTU (RS485), from ModBus-RTU to PROFIBUS DP adapter; SPDT contact relay board; remote system monitoring panel; UPS managing and server shutdown software
Optional features Isolation transformer; transformers/autotransformers for voltage adjustment; external maintenance bypass; custom battery cabinets; wall-mounted battery fuse switch box; battery thermal probe; parallel kit, load-sync for single UPS; AO+EO mode kit; backfeed protection; other options on request

System

Protection degree IP 20
Colour RAL 9005
Installation layout 10 cm wall-gap, side by side installation allowed Wall and side by side installation allowed
Accessibility Front and top access, bottom cable entry Front and top access, bottom cable entry Front access, bottom cable entry

Environmental

Operating temperature range 0°C to +40°C
Storage temperature range -10°C to +70°C
Altitude (AMSL) < 1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1 m (dBA) <60

Standards and certifications

CPSS EN 50171
Quality assurance,
environment, health and safety		 ISO 9001, ISO 14001, ISO 45001
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Environmental aspects IEC/EN 62040-4
Test and performance IEC/EN 62040-3
Protection degree IEC 60529
Marking CE
